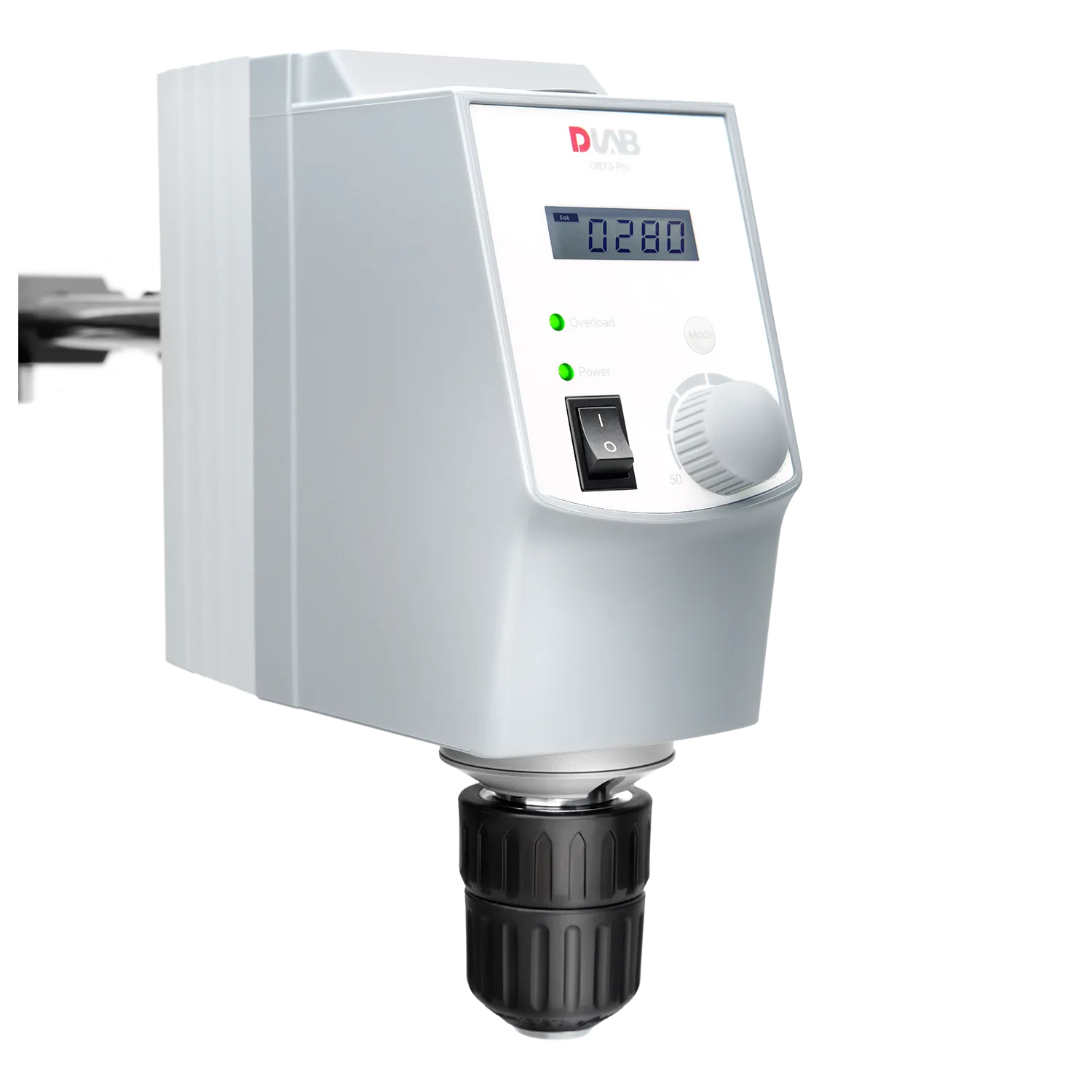

| Specifications | OS70 Pro |
|---|---|
|
Max. Stiring Quantity (H20)
|
70 L |
|
Speed Range
|
50-1100 rpm
|
|
Speed Display Accuracy
|
+-10 rpm |
|
Timer Settings Range |
0-99h 59min |
|
Max. Torque |
300N · cm |
|
Viscosity max. |
10000mPa · s |
|
Weight |
3.2 kg |
|
Motor Type |
Brushless DC Motor |
|
Voltage | Frequency |
100-240V 50/60Hz |
|
Speed Display |
LCD |
|
Torque Display |
LCD |
|
Overload Protection Display |
LCD |
|
Chuck Clamp Range Diameter |
0.5 – 10 mm |
|
Motor input/output Power |
180W/160W |
|
Protection Class |
IP21 |
|
Power |
200W |
|
Dimension [WxDxH] |
83 x 220 x 186 mm |
|
Permissible Ambient Temperature and Humidity |
5- 40 ºC 80% RH |
|
Data Interface |
RS232 |
