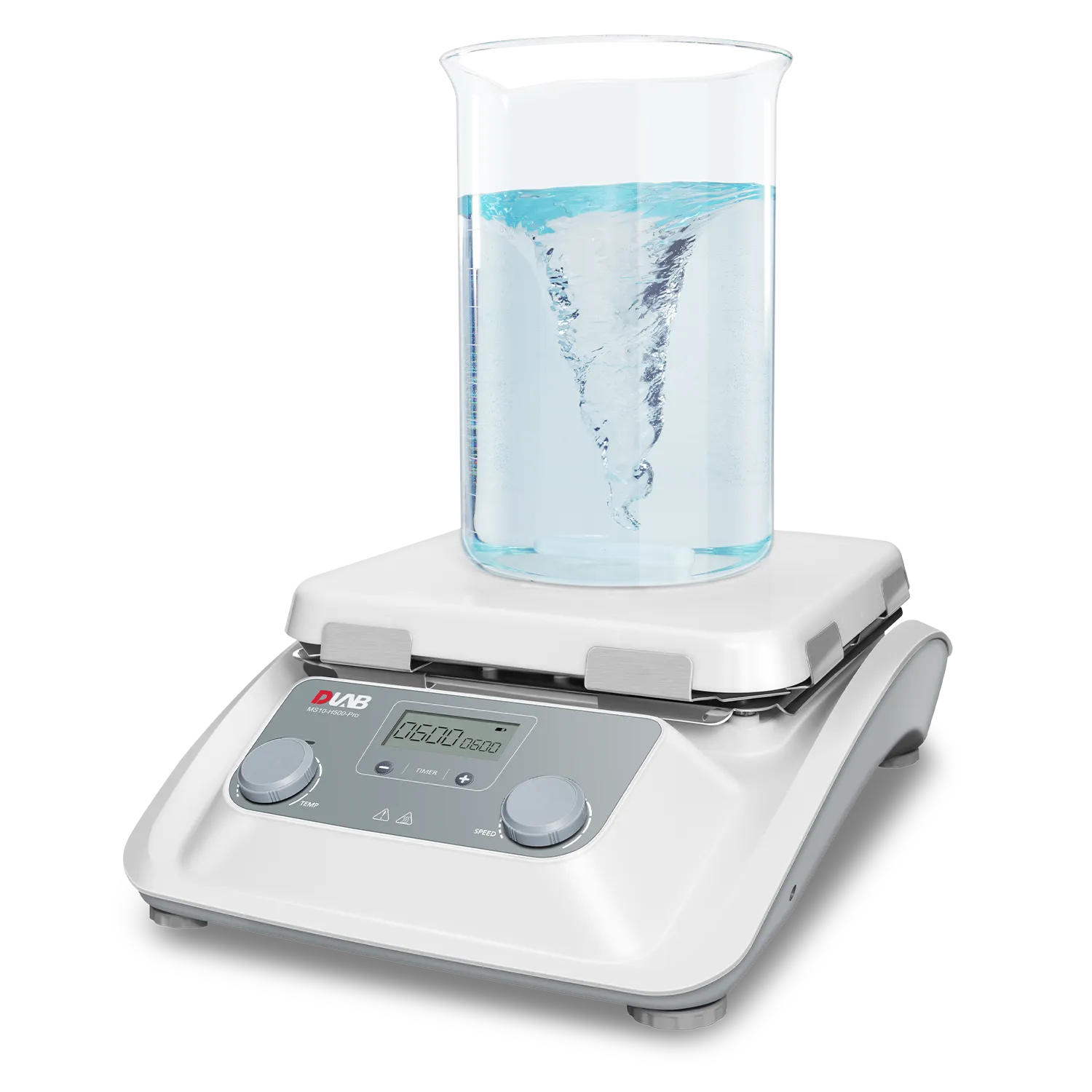

Name: Magnetic Hotplate Stirrer MS10 H500 Pro
SKU: 16534
Availability: InStock

Magnetic Hotplate Stirrer MS10 H500 Pro

Request Price

Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy
at ±0.2°C
Digital speed control of 100 -1500rpm
Max. heating plate temperature 500℃
The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
Data connector : The SD card also records the instrument’s running data in real time.
Timing function: the running time of the instrument can be set.

Specifications	MS10 H500 Pro
Work Plate Dimension [W x D]	254 x 254mm (10 inch)
Work Plate Material	Galss Ceramic
Motor Type	Brushless DC Motor
Stirring Positions	1
Max. Stiring Quantity (H20)	30 L
Max. Magnetic Bar [Length]	80 mm
Speed Range	100 – 1500 rpm Resolution +- 1rpm
Speed Display	LCD
Temperature Display	LCD
Heating Temperature Range	Room Temp. -500 °C Increment 1 C°
Temperature Control Accuracy	+- 1°C (<100°C) +- 1% (100°C)
Overheating Protection	540 °C
Temperature Display Accuracy	+- 0.1 °C
External Temperature Sensor	PT 1000(Acuracy +-02.°C)
“Hot” Warning	50 °C
Data Connector	SD Card
Protection Class	IP21
Motor Rating Input	18W
Motor Rating Output	10W
Power	1400W
Heanitg Output	1350W
Voltage Frequency	100-120/200-240V 50/60Hz
Dimension [WxDxH]	328 x 424 x 138 mm
Weight	7.2 kg
Timer Function	1 min – 99h 59min
Permissible Ambient Temperature and Humidity	5- 40 ºC 80% RH

Magnetic Hotplate Stirrer MS10 H500 Pro
