| Specifications | MS-H380 Pro |
|---|---|
|
Work Plate Dimension [W x D]
|
140 x 140 mm |
|
Work Plate Material
|
Aluminium Cover with ceramic coating |
|
Motor Type
|
Brushless DC Motor |
|
Stirring Positions |
1 |
|
Max. Stiring Quantity (H20) |
5 L |
|
Max. Magnetic Bar [Length] |
50 mm |
|
Speed Range |
200 – 1500 rpm |
|
Speed Display |
LCD |
|
Temperature Display |
LCD |
|
Heating Temperature Range |
Room Temp. -380 °C |
|
Heating Liquid Temperature Control Accuracy |
+- 1°C(<100 °C)
+- 1 %(>100 °C) |
|
Overheating Temperature Protection |
420 °C |
|
Temperature Display Accuracy |
+- 0.1 °C |
|
External Temperature Sensor |
PT 1000(Acuracy +-02.°C) |
|
“Hot” Warning |
— |
|
Data Connector |
— |
|
Protection Class |
IP21 |
|
Timer Function |
— |
|
Motor Rating Input |
2.4W |
|
Motor Rating Output |
1.8W |
|
Power |
510W |
|
Heanitg Output |
500W |
|
Voltage Frequency |
100-120/200-240V 50/60Hz |
|
Dimension [WxDxH] |
320 x 180 x 108 mm |
|
Weight |
2.2 kg |
|
Permissible Ambient Temperature and Humidity |
5- 40 ºC 80% RH |
Magnetic Hotplate Stirrer MS-H S
Request Price
Magnetic Hotplate Stirrer MS-H280 Pro
Request Price

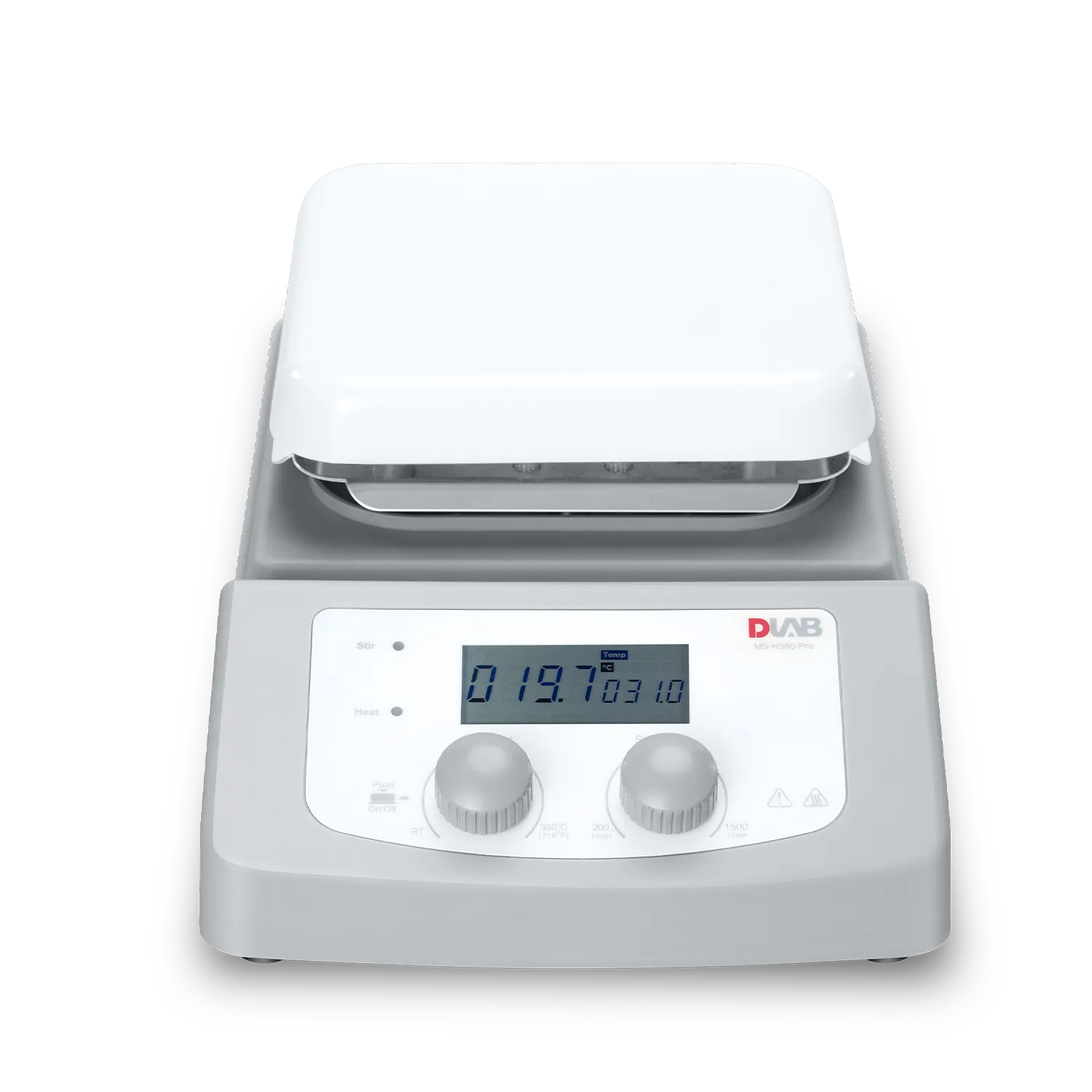

Magnetic Hotplate Stirrer MS-H380 Pro
Request Price
- Maximum heating temperature is 380°C
- High resolution LCD displays actual temperature and speed
- Brushless DC motor is maintenance free
- Aluminum ceramIc coating work plate, allowing immediate heat transfer
- External temperature control is possible with temperature sensor PT1000
- Digital speed control with maximum speed up to 1500rpm
- Maximum stirring quantity of H2O at 5L
Product Parameters
