| Specifications | MS-H340 S4 |
|---|---|
|
Work Plate Dimension [W x D]
|
0 135 mm (5 inch) x 4 |
|
Work Plate Material
|
Stainless Steel Cover with ceramic coating |
|
Motor Type
|
Brushless DC Motor |
|
Stirring Positions |
4 |
|
Max. Stiring Quantity (H20) |
10 L x 4 |
|
Max. Magnetic Bar [Length] |
40 mm |
|
Speed Range |
200 – 1500 rpm |
|
Speed Display |
LCD |
|
Temperature Display |
LCD |
|
Control Accuracy of Sensor |
+- 20 rpm |
|
Heating Temperature Range |
Room Temp. 25 – 340 °C |
|
Heating Liquid Temperature Control Accuracy |
+- 1°C(<100 °C)
+- 1 %(>100 °C) |
|
Overheating Temperature Protection |
420 °C |
|
Temperature Display Accuracy |
+- 0.1 °C |
|
External Temperature Sensor |
PT 1000(Acuracy +-02.°C) |
|
“Hot” Warning |
50 °C |
|
Data Connector |
— |
|
Protection Class |
IP20 |
|
Timer Function |
— |
|
Motor Rating Input |
1.8W x 4 |
|
Power |
515W x 4 |
|
Heanitg Output |
500W x 4 |
|
Voltage Frequency |
100-120/200-240V 50/60Hz |
|
Dimension [WxDxH] |
698 x 270 x 128 mm |
|
Weight |
9.5 kg |
|
Permissible Ambient Temperature and Humidity |
5- 40 ºC 80% RH |
Magnetic Hotplate Stirrer MS-H280 Pro
Request Price
Magnetic Hotplate Stirrer MS-H S10
Request Price

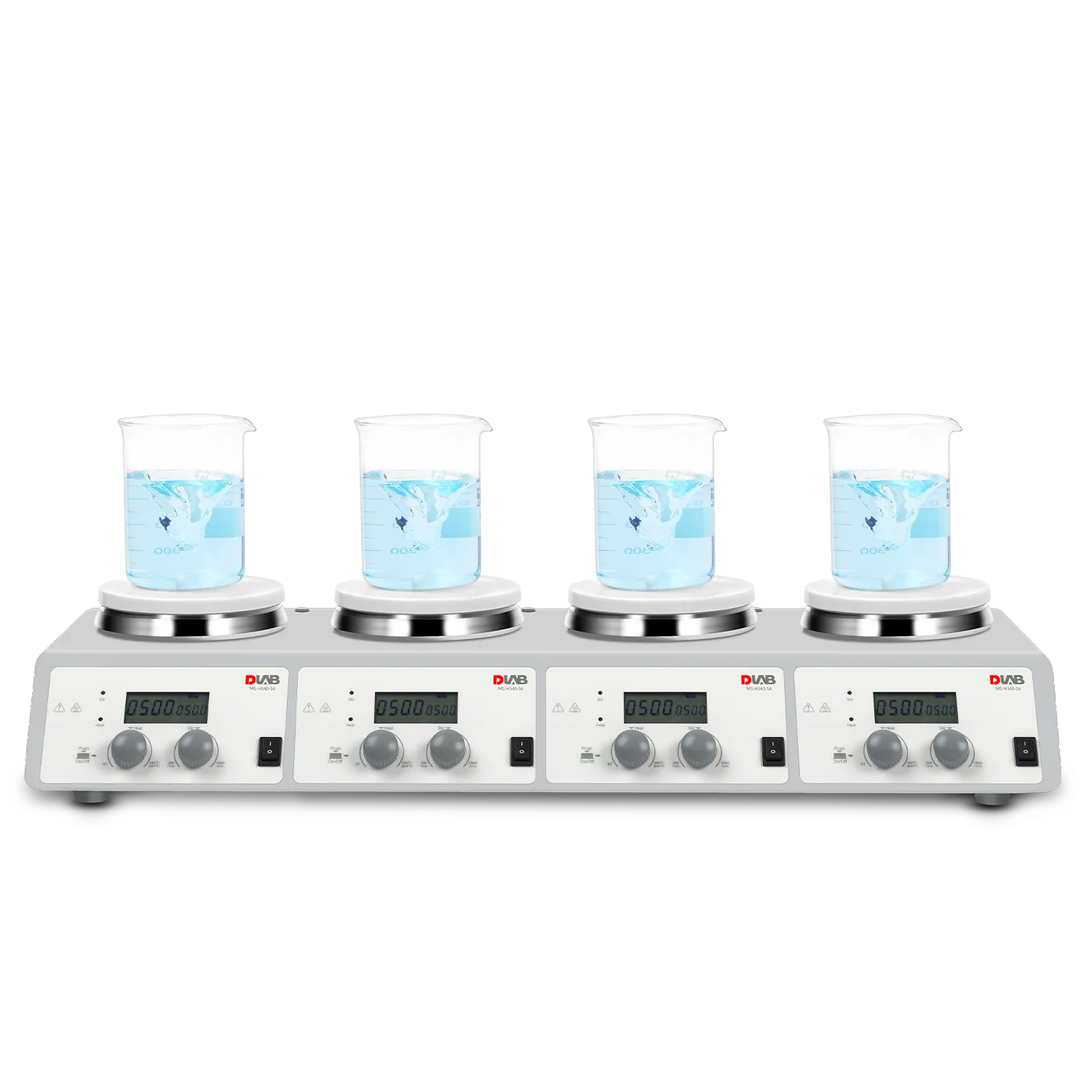

Magnetic Hotplate Stirrer MS-H340 S4
