| Specifications | MS-H-S |
|---|---|
|
Work Plate Dimension [W x D]
|
0 135 mm (5 inch) |
|
Work Plate Material
|
Stainless Steel Cover with ceramic coating |
|
Motor Type
|
Brushless DC Motor |
|
Stirring Positions |
1 |
|
Max. Stiring Quantity (H20) |
20 L |
|
Max. Magnetic Bar [Length] |
80 mm |
|
Speed Range |
100 – 1500 rpm |
|
Speed Display |
Scale |
|
Temperature Display |
Scale |
|
Heating Temperature Range |
Room Temp. -340 °C |
|
Heating Liquid Temperature Control Accuracy |
— |
|
Overheating Temperature Protection |
420 °C |
|
Temperature Display Accuracy |
— |
|
External Temperature Sensor |
— |
|
“Hot” Warning |
— |
|
Data Connector |
— |
|
Protection Class |
IP21 |
|
Timer Function |
— |
|
Motor Rating Input |
18W |
|
Motor Rating Output |
10W |
|
Power |
530W |
|
Heanitg Output |
500W |
|
Voltage Frequency |
100-120/200-240V 50/60Hz |
|
Dimension [WxDxH] |
160 x 280 x 10 mm |
|
Weight |
2.8 kg |
|
Permissible Ambient Temperature and Humidity |
5- 40 ºC 80% RH |

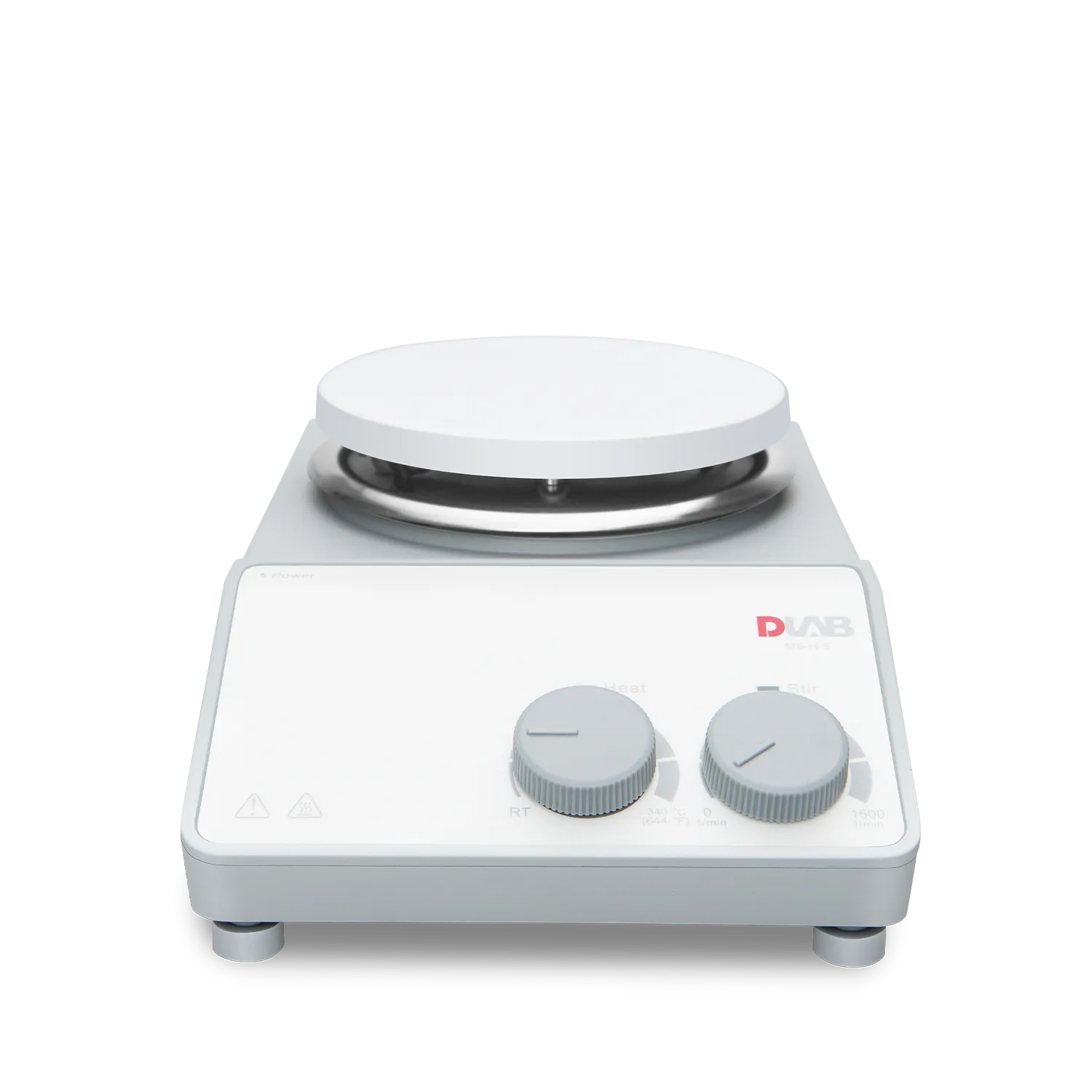

Magnetic Hotplate Stirrer MS-H Pro T
Request Price
Magnetic Hotplate Stirrer MS-H380 Pro
Request Price
Magnetic Hotplate Stirrer MS-H S
Request Price
- Brushless DC motor is maintenance free and explosion-proof
- Digital temperature control up to 340°C
- Digital speed control up to 1500rpm
- Maximum stirring quantity of H2O is 20L
- Safety circuits provide overheating protection
- “HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
- Work plate with ceramic coating provides good chemical-resistantperformance
- Wide variety of accessories available to choose
Product Parameters
