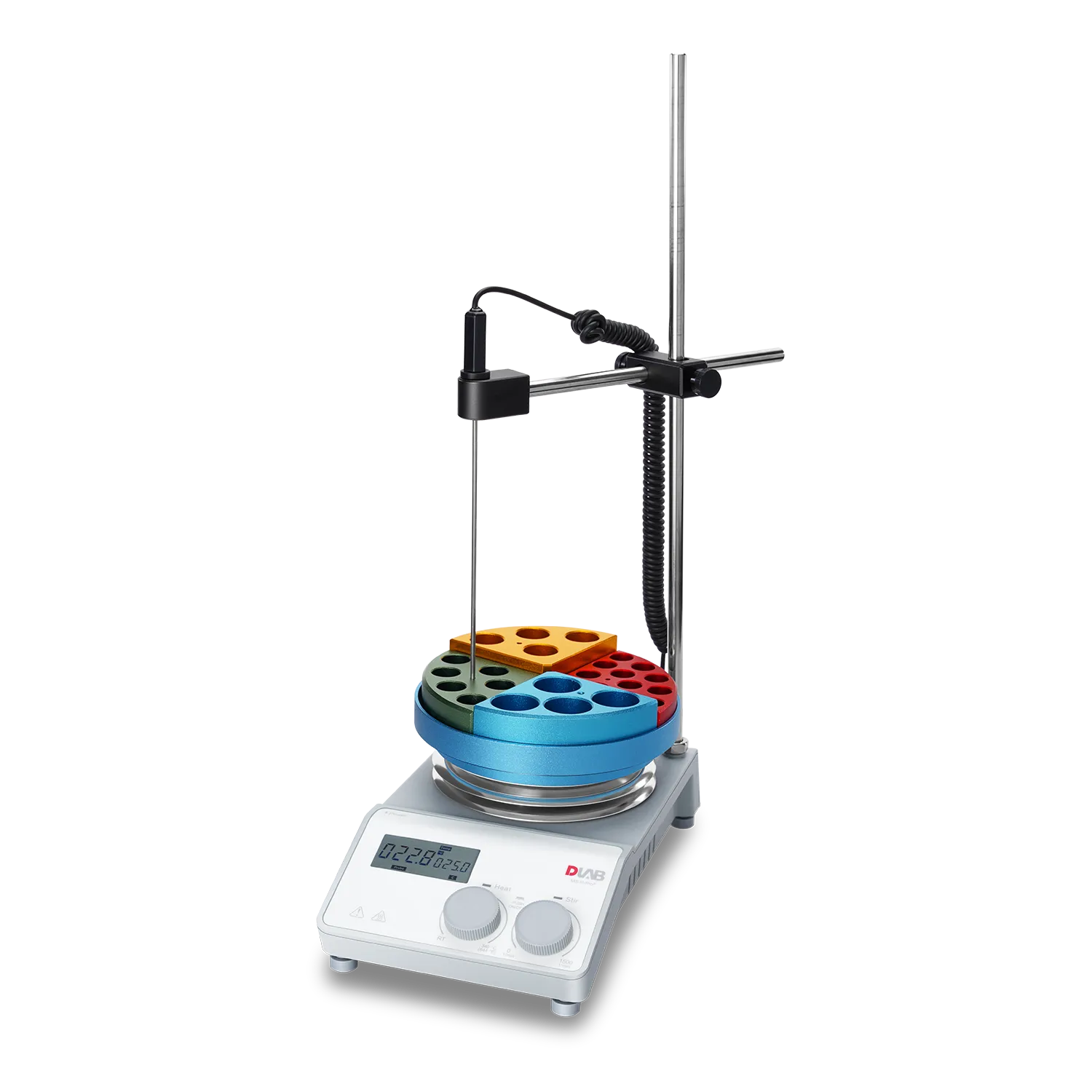

Name: Magnetic Hotplate Stirrer MS-H Pro +
SKU: 16563
Availability: InStock

Magnetic Hotplate Stirrer MS-H Pro +

Request Price

DC brushless motor free of maintenance and spark, and with long service life
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
“HOT” warning flashes if plate temperature is above 50°C even when hotplate is turned off
External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
Work plate with ceramic coating provides good chemical-resistantperformance
Remote function provides PC control and data transmission
Wide variety of accessories available to choose

Specifications	MS-H-PRO +
Work Plate Dimension [W x D]	0 135 mm (5 inch)
Work Plate Material	Stainless Steel Cover with ceramic coating
Motor Type	Brushless DC Motor
Stirring Positions	1
Max. Stiring Quantity (H20)	20 L
Max. Magnetic Bar [Length]	80 mm
Speed Range	100 – 1500 rpm resolution +- 1rpm
Speed Display	LCD
Temperature Display	LCD
Heating Temperature Range	Room Temp. -340 °C Increment 1 C°
Heating Liquid Temperature Control Accuracy	+- 1°C(<100 °C) +- 1 %(>100 °C)
Overheating Temperature Protection	420 °C
Temperature Display Accuracy	+- 0.1 °C
External Temperature Sensor	PT 1000(Acuracy +-02.°C)
“Hot” Warning	50 °C
Data Connector	RS232
Protection Class	IP21
Timer Function	—
Motor Rating Input	18W
Motor Rating Output	10W
Power	550W
Heanitg Output	500W
Voltage Frequency	100-120/200-240V 50/60Hz
Dimension [WxDxH]	160 x 280 x 10 mm
Weight	2.8 kg
Permissible Ambient Temperature and Humidity	5- 40 ºC 80% RH
