| Specifications | D1524R |
|---|---|
|
Max. Speed
|
15,000 rpm (200-15,000 rpm) in 100rpm increments |
|
Max. RCF
|
21,380 x g, step: 01 x g
|
|
Capacity |
1.5/2mL x 24,0.2 / 0.5mL x 36, PCR-8 strips x 4,5mL x 12,5mL x 18
|
|
Temperature Setting |
-20 С° / – 40С° |
|
Run Time |
30s-99 mni; HOLD (continuous running) |
|
Acceleration and deceleration
time |
25s + / 25s – |
|
Motor Type |
Brushless DC Motor |
|
Safety Devices |
Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system |
|
Power Requieriments |
Single-phase, 100-120V/200-240V, 50Hz/60Hz.500W |
|
Noise Level |
<56dB |
|
Dimensions D x W x H |
332 × 553 × 283mm |
|
Weight |
30kg |
|
Certification |
CE cTVus FCC |
|
Other Functions |
Rotation speed / RF switchover, inching operation, running processindicator,
sound dier! Adjustable acceleration / deceleration ta 9 levels program storage capacity. |
High Speed Mini Centrifuge D2012 Plus
Request Price
High Speed Micro Centrifuge D3024
Request Price

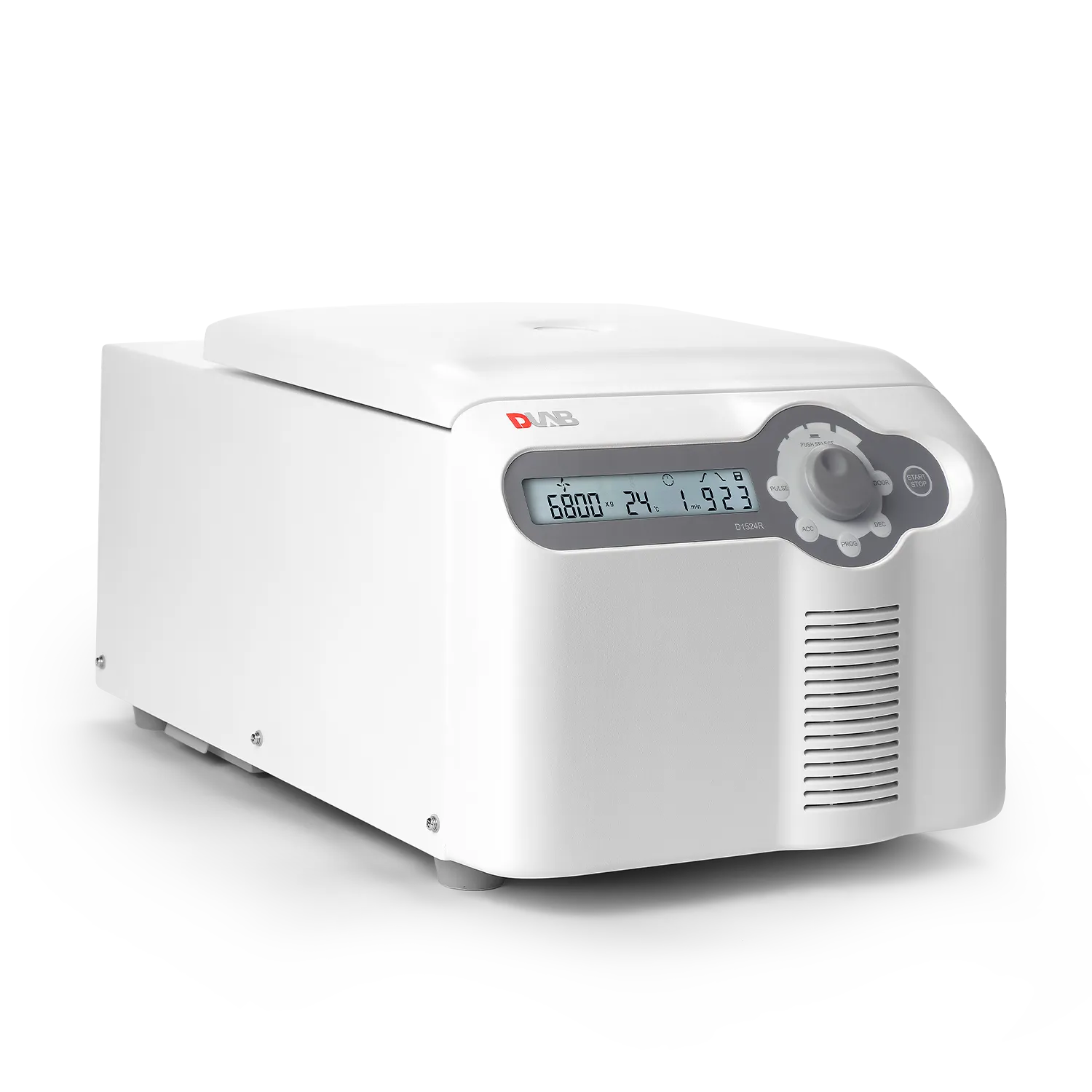

High Speed Refrigerated Micro Centrifuge D1524R
Request Price
- Electronic Magnetic door locking system – the lid can be closed with one hand soft touch
- Precooling, the compressor automatically starts cooling as long as the set temperature is lower than the ambient temperature
- Sound indicator at the end of running.
- Temperature range -20°C to 40°C
- Short pre-cooling time of only 7minutes from room temperature to 4°C
- Up to 9 program storage capacity
- 3-layer sealed rotors ensure safe centifugation
- High-strength aluminum alloy rotor can be fully autoclavable at 121°C
- Rotor imbalance detection alarm
- Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation
- Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL
centrifuge tubes/ PCR tubes capacity - An external condensation tank prevents water accumulation within centrifuge chamber
Product Parameters
